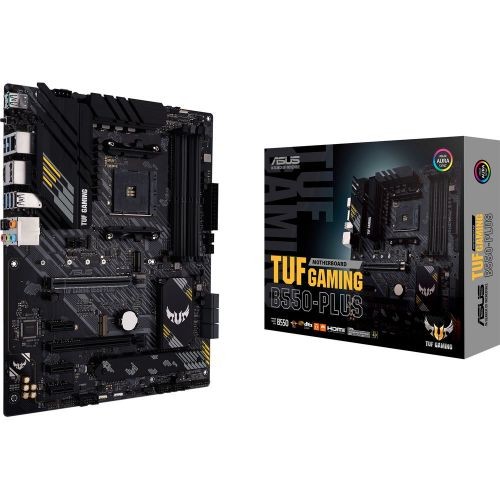

TARJETA MADRE ASUS TUF GAMING B550-PLUS

Descripción

CPUBuild in AMD AM4 Socket 3rd Gen AMD Ryzen™ Processors *ChipsetAMD B550Memoria4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.Gráfica1 x DisplayPort 1.4 **1 x HDMI 2.1(4K@60HZ)*Graphics specifications may vary between CPU types.Soporte Multi-GPUSupports AMD 2-Way CrossFireX TechnologyPuertos de Expansión3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 (x4 mode)3 x PCIe 3.0 x1 *1* Support PCIe bifurcation for RAID on CPU function.AlmacenamientoTotal supports 2 x M.2 slots and 6 x SATA 6Gb/s ports3rd Gen AMD Ryzen™ Processors :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)AMD B550 Chipset :1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*26 x SATA 6Gb/s port(s),Support Raid 0, 1, 10LANRealtek RTL8125B 2.5Gb EthernetTUF LANGuardWireless Data NetworkM.2 slot only (Key E) (Support PCIe interface)**Wi-Fi module is sold separately.AudioRealtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- Exclusive DTS Custom for GAMING Headsets.- Optical S/PDIF out port(s) at back panel- Audio cover- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors- Unique de-pop circuitPuertos USBRear USB Port ( Total 8 )2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)4 x USB 3.2 Gen 1 port(s)( x Type-A)2 x USB 2.0 port(s)( x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A)Software FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura Sync- AI Noise Cancelling MicrophoneAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateTUF GAMING CPU-ZAI ChargerASUS Turbo LANDAEMON ToolsDTS Custom for GAMING HeadsetsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Special FeaturesASUS TUF PROTECTION- ASUS DIGI+ VRM (Digital power design with Dr. MOS)- ASUS Enhanced DRAM Overcurrent Protection- ASUS ESD Guards- TUF LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- ASUS Q-SlotASUS Thermal Solution- Aluminum M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProcoolAURA Sync- Standard RGB headers- Addressable Gen 2 RGB headerPuertos posteriores I/O1 x DisplayPort1 x HDMI1 x LAN (2.5G) port(s)2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)4 x USB 3.2 Gen 1 (blue) Type-A2 x USB 2.0 (one port can be switched to USB BIOS FlashBack™)1 x Optical S/PDIF out5 x Audio jack(s)1 x BIOS FlashBack™ Button(s)Internal I/O1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)1 x M.2 with E key for Wi-Fi module1 x SPI TPM header6 x SATA 6Gb/s connector(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port headerAccesoriosUser’s manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x TUF Gaming Sticker1 x TUF Certification card(s)1 x M.2 SSD screw package(s)1 x M.2 Rubber Package(s)BIOS256 Mb Flash ROM, UEFI AMI BIOSManejoWOL by PXESistema operativoWindows® 10 64-bitForm FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )Nota*1 PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.*2 M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.
