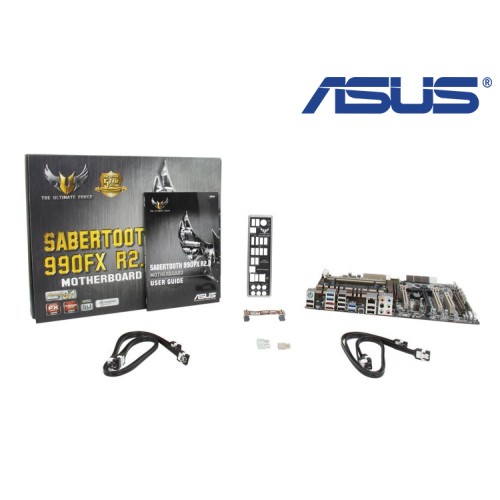

TARJETA MADRE ASUS SABERTOOTH 990FX R3.0 4DDR3 3PCIe16 USB3 SOC AM3+Ca

Descripción

ModelBrandASUSSeriesTUFModelSABERTOOTH 990FX R2.0Supported CPUCPU Socket TypeAM3+CPU TypeFX / Phenom II / Athlon II / Sempron 100 SeriesFSB2600 MHzChipsetsChipsetAMD 990FX + SB950MemoryNumber of Memory Slots4×240pinMemory StandardDDR3 1866/ 1600/ 1333/ 1066Maximum Memory Supported32GBChannel SupportedDual ChannelExpansion SlotsPCI Express 2.0 x163 x PCIe 2.0 x16 (dual x16 or x16/x8/x8) *11 x PCIe 2.0 x16 (x4 mode, black)*1: When running dual graphics cards, be sure to insert the card in the first and third PCIex16 slot to get the best performance.PCI Express x11 x PCIe 2.0 x1PCI Slots1 x PCI SlotStorage DevicesSATA 6Gb/s8 x SATA 6Gb/sSATA RAID6 x SATA 6Gb/s port(s) (brown) Support Raid 0, 1, 5, 10Onboard VideoOnboard Video ChipsetNoneOnboard AudioAudio ChipsetRealtek ALC892Audio Channels8 ChannelsOnboard LANLAN ChipsetRealtek 8111FMax LAN Speed10/100/1000MbpsRear Panel PortsPS/21 x PS/2 keyboard/mouse portUSB 3.04 x USB 3.0USB 1.1/2.08 x USB 2.0eSATA2 x eSATA 6Gb/sS/PDIF Out1 x OpticalAudio Ports6 PortsInternal I/O ConnectorsOnboard USB1 x USB 3.0 connector(s) support(s) additional 2 USB 3.0 port(s) (19-pin, moss green)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)Other Connectors1 x TPM connector(s) 1 x COM port(s) connector(s)1 x CPU Fan connector(s) (1 x 4-pin)1 x CPU OPT Fan connector(s) (1 x 4-pin)4 x Chassis Fan connector(s) (4 x 4-pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x Front panel connector(s) 1 x System panel(s) (Q-Connector)1 x DirectKey Button(s)1 x DRCT header(s)1 x MemOK! button(s)1 x Clear CMOS jumper(s)Physical SpecForm FactorATXDimensions (W x L)12.0″ x 9.6″Power Pin24 PinFeaturesFeaturesMulti-GPU Support:Supports NVIDIA Quad-GPU SLI TechnologySupports AMD Quad-GPU CrossFireX Technology Special Features:TUF ENGINE! Power Design:- 8 +2 Digital Phase Power Design- TUF Components (Alloy choke, Cap. & MOSFET; certified by military-standard)- ASUS DIGI+ Power Control Utility- E.S.P.: Efficient Switching Power DesignUltimate COOL! Thermal Solution:- TUF CeraM!X Heatsink Coating Tech.- TUF Thermal RadarASUS Exclusive Features:- Remote GO!- USB BIOS Flashback- MemOK!- AI Suite II- Ai Charger+- Anti-Surge- ESD Guards- Front Panel USB 3.0 Support- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface- Network iControl- USB 3.0 BoostASUS EZ DIY:- DirectKey- ASUS O.C. Profile- ASUS EZ Flash 2- ASUS MyLogo 2- Multi-language BIOSASUS Q-Design:- ASUS Q-Shield- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)- ASUS Q-Slot- ASUS Q-DIMM- ASUS Q-ConnectorOperating System Support:Windows 8.1Windows 8Windows 7Windows VistaWindows XPBIOS:64MB Flash ROM, UEFI BIOS, PnP, SLP2.1, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, F12 PrintScreen, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) memory informationManageability:WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXESupport Disc:DriversAnti-virus software (OEM version)ASUS UpdateASUS Utilities
