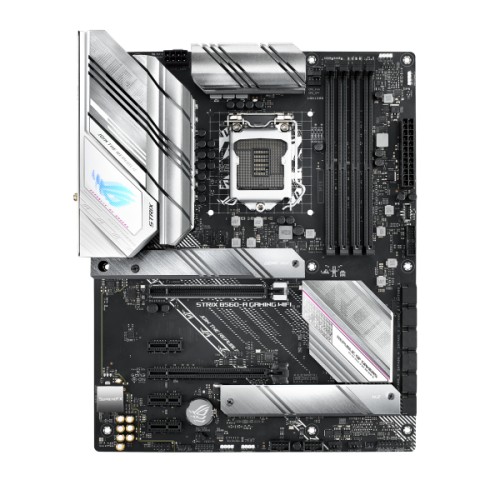

TARJETA MADRE ASUS ROG STRIX B560-A GAMING WIFI LGA SOC1200 HDMI/DP

Descripción

CPUIntel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® ProcessorsSupports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.ChipsetB560Memoria Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. Gráficos1 x DP1.4** * Graphics specifications may vary between CPU types. **Only Intel® 11th processors, support DisplayPort 1.4 with max. resolution of 5120 x 2880 @60Hz, others would only support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz .Please refer to www.intel.com for any update. *** Only Intel® 11th processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates. Puertos de Expansión Intel® 11th &10th Gen Processors1 x PCIe 4.0/3.0 x16 slot(s)- Intel® 11th processors support PCIe 4.0 x16 mode- Intel®10th processors support PCIe 3.0 x16 modeIntel® B560 Chipset1 x PCIe 3.0 x16 slot (supports x4 mode)*3 x PCIe 3.0 x1 slots AlmacenamientoSupports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110- Only Intel® 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.Intel® B560 ChipsetM.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*6 x SATA 6Gb/s ports* When M.2_2 runs at SATA mode, SATA6G_1 will be disabled** To enable Intel® Optane™ Mem Redes InalámbricasWi-Fi 62×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency bandBluetooth v5.2Puertos USBRear USB:Total 9 ports 1 x USB 3.2 Gen 2×2 port(s) (1 x USB Type-C®)1 x USB 3.2 Gen 2 port (1 x Type-A)2 x USB 3.2 Gen 1 port (2 x Type-A)5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®) Front USB:Total 7 ports 1 x USB 3.2 Gen 1 connector(s) (suppport(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Audio Audio Features- SupremeFX Shielding Technology- Savitech SV3H712 AMP- Rear audio USB Type-C® port- Premium Japanese audio capacitors- Audio cover* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. Puertos E/S Traseros 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)1 x USB 3.2 Gen 2 port(s) (1 x Type-A)2 x USB 3.2 Gen 1 port(s) (2 x Type-A)5 x USB 2.0 port(s) (4 x Type-A, 1 x audio USB Type-C®)1 x HDMI™ port1 x DisplayPort1 x ASUS Wi-Fi Module1 x Realtek 2.5Gb Ethernet5 x Audio jacks1 x BIOS FlashBack™ buttonPuertos Internos1 x TB Header (for add-on TB card) Fan and Cooling related 1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)3 x 4-pin Chassis Fan header(s)Power related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)6 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 portsMiscellaneous2 x AURA Addressable Gen 2 header(s)2 x AURA RGB header(s)1 x Clear CMOS header1 x Front Panel Audio header (AAFP)1 x SPI TPM header (14-1pin)1 x 20-5 pin System Panel heade1 x Thunderbolt™ header1 x S/PDIF Out headerCaracterísticas Especiales Extreme Engine Digi+- 5K Black Metallic CapacitorsASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-SlotASUS Thermal Solution- M.2 heatsinkASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCool- Pre-mounted I/O shield- SafeSlotAURA Sync- AURA RGB header(s)- Addressable Gen 2 RGB header(s) Características de Software ROG Exclusive Software- RAMCache III- ROG CPU-Z- GameFirst VI- Sonic Studio III + Sonic Studio Virtual Mixer- Sonic Radar III- DTS® Sound Unbound- Overwolf- Anti-virus softwareASUS Exclusive SoftwareArmoury Crate- AIDA64 Extreme (60 days free trial)- AURA Creator- AURA Sync- Two-Way AI Noise CancelationAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDIGI+ VRMFan Xpert 4- EZ updateMyAsusWinRARDAEMON ToolsUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode BIOS128 Mb Flash ROM, UEFI AMI BIOSManejabilidadWOL by PME, PXE Accesorios Cables4 x SATA 6Gb/s cables1 x ROG audio USB Type-C® cableMiscellaneous1 x ASUS Wi-Fi moving antennas1 x Cable ties pack1 x M.2 Q-Latch package1 x M.2 Rubber Packages1 x ROG key chain1 x ROG STRIX stickers1 x ROG STRIX thank you cardInstallation Media1 x Support DVDDocumentation1 x User manual Factor de formaATX30.5cm x 24.4cm
