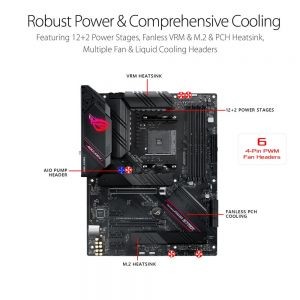

TARJETA MADRE ASUS ROG STRIX B550-F GAMING AM4/AMD/DDR4/DHMI 2.1

Descripción

ROG STRIX B550-F GAMINGCPU AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop ProcessorsChipsetAMD B550MemoryDual Channel Memory ArchitectureOptiMem IIECC Memory (ECC mode) support varies by CPU.4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered MemoryAMD RyzenTM 4000 G-Series ProcessorGraphicIntegrated Graphics Processor1 x DisplayPort 1.2*Graphics specifications may vary between CPU types.1 x HDMI 2.1(4K@60HZ)Multi-GPU SupportSupports AMD 2-Way CrossFireX TechnologyExpansion Slots1 x PCIe 3.0 x16 (x16 mode)AMD B550 Chipset1 x PCIe 3.0 x16 (x4 mode) *3 x PCIe 3.0 x11 x PCIe 4.0 x16 (x16 mode)AMD Ryzen™ 5000 Series/ 3000 Series Desktop ProcessorsStorage1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)AMD B550 Chipset : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*6 x SATA 6Gb/s port(s)Support Raid 0, 1, 10Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors : AMD RyzenTM 4000 G-Series Processors : LANIntel® I225-V 2.5Gb EthernetASUS LANGuardAudioROG SupremeFX8-Channel High Definition Audio CODEC S1220A- Dual OP Amplifiers- Impedance sense for front and rear headphone outputs- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality120dBSNR stereo playback outputand113dBSNR recording input- Supports up to 32-Bit/192kHz playback *Audio Feature :- SupremeFX Shielding™ Technology- Gold-plated jacks- Optical S/PDIF in port(s) at back panel- Audio Shielding- Premium Japanese audio capacitors- Audio Cover* Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.USB PortsRear USB Port ( Total 8 )2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)2 x USB 2.0 port(s)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)4 x USB 2.0 port(s)Software Features ROG Exclusive Software – RAMCache III – ROG CPU-Z – GameFirst VI – Sonic Studio III + Sonic Studio Virtual Mixer – Sonic Radar III – DTS® Sound Unbound – Overwolf – Anti-virus software ASUS Exclusive Software Features Armoury Crate – Aura Creator – Aura Sync – AI Noise Cancelling Microphone AI Suite 3: – PPSU EPU DIGI+ VRM Fan Xpert 4 TurboV EVO – EZ update WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ ModeASUS Special FeaturesAura Sync – Standard RGB header(s) – Addressable Gen 2 RGB header(s) ASUS Q-Design – ASUS Q-DIMM – ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green) – ASUS Q-Slot ASUS Thermal Solution – Aluminum M.2 heatsink ASUS EZ DIY -BIOS FlashBack™ button -BIOS FlashBack™ LED -Clear CMOS header -ProCool -Pre-mounted I/O shield – SafeSlotBack I/O Ports1 x Intel® I225-V 2.5Gb Ethernet1 x DisplayPort1 x HDMI2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)4 x USB 3.2 Gen 12 x USB 2.01 x Optical S/PDIF out1 x BIOS FlashBack™ Button(s)5 x Gold-plated audio jacksInternal I/O Ports1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)3 x Chassis Fan connector(s)1 x AIO_PUMP connector1 x AAFP connector2 x Aura RGB Strip Header(s)1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)6 x SATA 6Gb/s connector(s)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x System panel(s)1 x Thermal sensor connector(s)1 x Clear CMOS jumper(s)AccessoriesUser´s manual4 x SATA 6Gb/s cable(s)1 x Supporting DVD1 x ROG Strix stickers1 x Cable ties pack(s)1 x Extension cable for Addressable LED1 x ROG Thank you card1 x M.2 SSD screw package(s)1 x M.2 Rubber Package(s)BIOS256 Mb Flash ROM, UEFI AMI BIOSManageabilityWOL by PME, PXEOperating SystemWindows® 10 64-bitForm FactorATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )Note* Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3 * When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.
