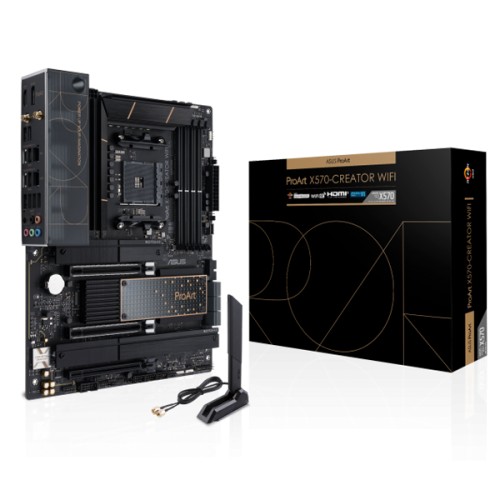

TARJETA MADRE ASUS PROART X570-CREATOR WIFI AM4 M.2/HDMI/USB 3.2 ATX

Descripción

CPUAMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop ProcessorsAMD Socket AM4 for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors* ChipsetX570MemoriaMemory Channels: 4DDR4 (Dual channel)Max Memory Size: 128GBAMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors4 x DIMM, Max. 128GB, DDR4 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*AMD Ryzen™ 5000 G-Series and 4000 G-Series Processors4 x DIMM, Max. 128GB, DDR4 DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*AMD Ryzen™ 2000 Series Desktop Processors4 x DIMM, max. 128GB, DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*AMD Ryzen™ 3000 G-Series and 2000-G Series Desktop Processors4 x DIMM, max. 128GB, DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 MHz, un-buffered memory*OptiMem IIDual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).Gráficos1 x HDMI® port***2 x Intel® Thunderbolt™ 4 ports1 x HDMI® 2.1(4K@60Hz)2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.2/1.4 and Thunderbolt™ video outputs ** VGA resolution support depends on processors’ or graphic cards’ resolution. For more details about the video input and output settings please refer to the user manual.Ranuras de expansiónAMD Ryzen™ 5000 Series and 3000 Series Desktop Processors2 x PCIe 4.0 x16 (x16 or dual x8**)*AMD Ryzen™ 5000 G-Serie, 4000 G-Series and 2000 Series Processors2 x PCIe 3.0 x16 (x16 or dual x8**)*AMD Ryzen™ 2000 G-Series and 3000 G-Series Processors1 x PCIe 3.0 x16 (x8 mode)*AMD X570 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)* Support PCIe bandwidth bifurcation for RAID on CPU function.** PCIEX16_2 slot share bandwidth with M.2_2, which runs at PCIe 4.0/3.0 x8 by default.When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings.AlmacenamientoSupports 3 x M.2 slots and 6 x SATA 6Gb/s portsTotal supports 3 x M.2 slots and 6 x SATA 6Gb/s portsAMD Ryzen™ 5000 Series and 3000 Series Desktop ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)*AMD Ryzen™ 5000 G-Serie, 4000 G-Series and 2000 Series ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4)*AMD Ryzen™ 2000 G-Series and 3000 G-Series ProcessorsM.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)AMD X570 ChipsetM.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)Supports RAID 0, 1, 106 x SATA 6Gb/s ports * M.2_2 slot share bandwidth with PCIEX16_2. When M.2_2 is enabled, PCIEX16_2 will run PCIe 4.0/3.0 x4 mode, adjust this item in BIOS settings. Ethernet1 x Marvell® AQtion AQC113CS 10Gb Ethernet1 x Intel® I225-V 2.5Gb EthernetASUS LANGuard 1 x Intel® 2.5Gb Ethernet1 x Marvell® 10Gb EthernetWireless y BluetoothWi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)Supports 2.4/5/6GHz frequency band*Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.USBRear USB:Total 10 portsRear USB (Total 10 ports)2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging support4 x USB 3.2 Gen 2 port(s) (4 x Type-A)4 x USB 3.2 Gen 1 port(s) (4 x Type-A) Front USB (Total 9 ports)1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 portsAudioALC S1220ARealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*- Impedance sense for front and rear headphone outputs- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)- Supports up to 32-Bit/192 kHz playback*Audio Features- Power pre-regulator reduces power input noise to ensure consistent performance- Premium Japanese audio capacitors- Dedicated audio PCB layers- Audio cover- Unique de-pop circuit* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.Puertos E/S traseros2 x Thunderbolt™ 4 USB Type-C® port(s)4 x USB 3.2 Gen 2 port(s) (4 x Type-A)4 x USB 3.2 Gen 1 port(s) (4 x Type-A)1 x DisplayPort (Input only)1 x HDMI® port1 x Intel® I225-V 2.5Gb Ethernet port1 x Marvell® AQtion AQC113CS 10Gb Ethernet port1 x ASUS Wi-Fi Module5 x Audio jacks1 x BIOS FlashBack™ buttonPuertos internos2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) with up to 5V/3A, 15W charging supportFan and Cooling related1 x 4-pin CPU Fan header(s)1 x 4-pin CPU OPT Fan header(s)1 x 4-pin AIO Pump header(s)1 x W_PUMP+ header(s)4 x 4-pin Chassis Fan header(s)Power related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related3 x M.2 slots (Key M)6 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports3 x USB 2.0 header(s) support(s) additional 6 USB 2.0 portsMiscellaneous3 x AURA Addressable Gen 2 header(s)1 x AURA RGB header(s)1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x SPI TPM header (14-1pin)1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor headerFunciones especiales de ASUSASUS 5X PROTECTION III- DIGI+ VRM (- Digital power design with Dr. MOS)- Enhanced DRAM Overcurrent Protection- ESD Guards- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- M.2 Q-Latch- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCool II- Pre-mounted I/O shield- SafeSlotAURA Sync- AURA RGB header(s)- Addressable Gen 2 RGB header(s)Bespoke Motherboard Design & Business Focused Features- 24/7 Reliability – Overcurrent ProtectionSoftwareASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Two-Way AI Noise CancelationAI Suite 3- 5-Way Optimization by Dual Intelligent Processors 5TPUEPUDigi+ VRMFan Xpert 4Turbo app- EZ updateASUS CPU-ZIT Management software supported- ASUS Control Center Express(ACCE)ProArt Creator HubDAEMON ToolsNorton Anti-virus software (Free Trial version)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeFlexKeyBIOS256 Mb Flash ROM, UEFI AMI BIOSManejabilidadWOL by PME, PXEAccesoriosCables4 x SATA 6Gb/s cables1 x DP to DP cable for Thunderbolt™ 4Miscellaneous1 x ASUS Wi-Fi moving antennas2 x M.2 Rubber Package(s)1 x M.2 SSD screw package(s)1 x Q-connectorInstallation Media1 x Support DVDDocumentation1 x ACC Express Activation Key Card1 x User manualSistema operativoWindows® 10 64-bit, Windows® 11 ReadyWindows® 11 64-bitWindows® 10 64-bitFactor de formaATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) 30.5cm*24.5cm
