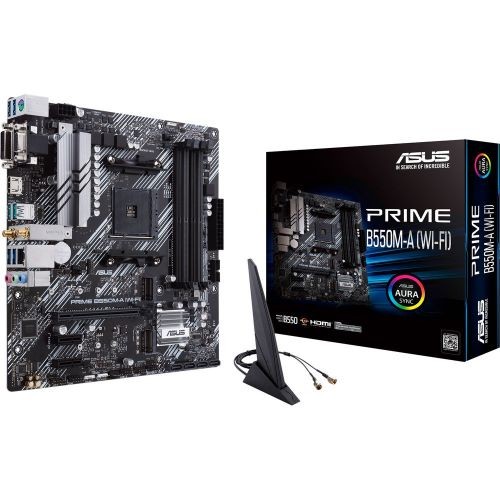

TARJETA MADRE ASUS PRIME B550M-A (WI-FI) DDR4/HDMI 2.1/USB 3.2

Descripción

CPUBuild in AMD AM4 Socket for 3rd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors *ChipsetAMD B550Memoria3rd Gen AMD Ryzen™ Processors4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *Dual Channel Memory ArchitectureECC Memory (ECC mode) support varies by CPU.Gráfica1 x D-Sub1 x DVI-D1 x HDMI 2.1(4K@60HZ)*Graphics specifications may vary between CPU types.Puertos de Expansión3rd Gen AMD Ryzen™ Processors1 x PCIe 4.0 x16 (x16 mode)3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors1 x PCIe 3.0 x16 (x16 mode)AMD B550 Chipset2 x PCIe 3.0 x1AlmacenamientoTotal supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports3rd Gen AMD Ryzen™ Processors :1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 4.0 x4 and SATA modes) storage devices support3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors :1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices supportAMD B550 Chipset :1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support4 x SATA 6Gb/s port(s),Support Raid 0, 1, 10LANRealtek RTL8111H 1Gb EthernetWireless Data NetworkIntel® Wi-Fi 6 AX2002x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMOSupports up to 2.4Gbps max data rateSupports dual band frequency 2.4/5 GHzSupports channel bandwidth: HT20/HT40/HT80/HT160Supports PCIe interfaceBluetoothBluetooth v5.1**BT 5.1 function will be ready in Windows 10 build 19041 or later.AudioRealtek ALC887 7.1 Surround Sound High Definition Audio CODEC- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playbackAudio Feature :- LED-illuminated design- Audio Shielding- Dedicated audio PCB layers- Premium Japanese audio capacitors* Choose the chassis with HD audio module in front panel to support 8-channel audio output.Puertos USBRear USB Port ( Total 6 )2 x USB 3.2 Gen 2 port(s)(2 x Type-A)4 x USB 3.2 Gen 1 port(s)(4 x Type-A)Front USB Port ( Total 6 )2 x USB 3.2 Gen 1 port(s)(2 x Type-A)4 x USB 2.0 port(s)(4 x Type-A)Software FeaturesASUS Exclusive SoftwareArmoury Crate- Aura Creator- Aura SyncAI Suite 3- Performance And Power Saving UtilityTurboV EVOEPUDigi+ VRMFan Xpert 2+- EZ updateASUS CPU-ZAI ChargerDAEMON ToolsNorton Anti-virus software (Free Trial for 60 days)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ ModeASUS Special FeaturesASUS 5X PROTECTION III- ASUS DIGI+ VRM- ASUS LANGuard- ASUS Overvoltage Protection- ASUS SafeSlot Core- ASUS Stainless-Steel Back I/OASUS Q-Design- ASUS Q-DIMM- ASUS Q-SlotASUS Thermal Solution- Aluminum heatsink designAURA Sync- Standard RGB headers- Addressable Gen 2 RGB headerASUS Lighting ControlPuertos posteriores I/O1 x PS/2 keyboard/mouse combo port(s)1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45) port(s)2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A)4 x USB 3.2 Gen 1 (blue) Type-A3 x Audio jack(s)1 x ASUS Wi-Fi ModuleInternal I/O1 x CPU Fan connector(s)1 x CPU OPT Fan connector(s)2 x Chassis Fan connector(s)2 x Aura RGB Strip Headers1 x Addressable Gen 2 header(s)1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)1 x SPI TPM header4 x SATA 6Gb/s connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin EATX 12V Power connectors1 x Front panel audio connector(s) (AAFP)1 x Clear CMOS jumper(s)1 x System panel connector1 x COM port header1 x Speaker connectorAccesoriosI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVDUser manual1 x Wi-Fi moving antenna1 x M.2 SSD screw package(s)BIOS256 Mb Flash ROM, UEFI AMI BIOSManejoWOL by PXESistema operativoWindows® 10 64-bitForm FactormATX Form Factor9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
