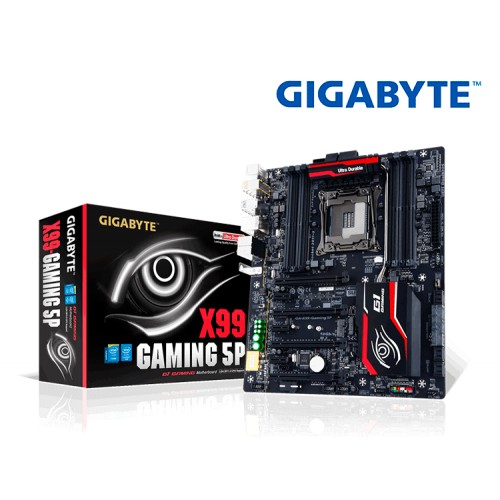

MOTHERBOARD GIGABYTE GA-X99-GAMING 5P 2011

Descripción

ModeloGA-X99-GAMING 5PCPUSupport for Intel® Core™ i7 processors in the LGA2011-3 packageL3 cache varies with CPUSocketLGA2011-3 ChipsetIntel® X99 Express ChipsetMemoria8 x DDR4 DIMM sockets supporting up to 128 GB of system memory* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.4 channel memory architectureSupport for DDR4 3333(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400(O.C.) / 2133 MHz memory modulesSupport for non-ECC memory modulesSupport for Extreme Memory Profile (XMP) memory modulesSupport for RDIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operates in non-ECC mode)Tarjeta Gráfica AudioCreative® Sound Core 3D chipSupport for Sound Blaster Recon3DiTI Burr Brown® OPA2134 operational amplifierHigh Definition Audio2/5.1-channelSupport for S/PDIF OutLANQualcomm® Atheros Killer E2201 LAN chip (10/100/1000 Mbit)Puertos de expansión   2 x PCI Express x16 slots, running at x16 (PCIE_1/PCIE_2)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIE_1 slot; if you are installing two PCI Express graphics cards, it is recommended that you install them in the PCIE_1 and PCIE_2 slots.2 x PCI Express x16 slots, running at x8 (PCIE_3/PCIE_4)* The PCIE_4 slot shares bandwidth with the PCIE_1 slot. When the PCIE_4 slot is populated, the PCIE_1 slot will operate at up to x8 mode.* When an i7-5820K CPU is installed, the PCIE_2 slot operates at up to x8 mode and the PCIE_3 operates at up to x4 mode.(All PCI Express x16 slots conform to PCI Express 3.0 standard.)3 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.)1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)Soporte Multi-GPUSupport for 4-Way/3-Way/2-Way AMD CrossFire™/NVIDIA® SLI™ technology* The 4-Way NVIDIA® SLI™ configuration is not supported when an i7-5820K CPU is installed. To set up a 3-Way SLI configuration, refer to “1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration.”Almacenamiento Chipset:1 x M.2 PCIe connector(Socket 3, M key, type 2242/2260/2280 SATA & PCIe x2/x1 SSD support)1 x SATA Express connector6 x SATA 6Gb/s connectors (SATA3 0~5)Support for RAID 0, RAID 1, RAID 5, and RAID 10* Only AHCI mode is supported when an M.2 PCIe SSD or a SATA Express device is installed.(M2_10G, SATA Express, and SATA3 4/5 connectors can only be used one at a time. The SATA3 4/5 connectors will become unavailable when an M.2 SSD is installed in the M2_10G connector.)Chipset:4 x SATA 6Gb/s connectors (sSATA3 0~3), supporting IDE and AHCI modes only (An operating system installed on the SATA3 0~5 connectors cannot be used on the sSATA3 0~3 connectors.)USBChipset:4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)Chipset + Renesas® uPD720210 USB 3.0 Hub:4 x USB 3.0/2.0 ports on the back panelConectores I/OInternos  1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x PCIe power connector1 x I/O shield audio LED power connector1 x heatsink LED power connector1 x M.2 Socket 3 connector1 x SATA Express connector10 x SATA 6Gb/s connectors1 x CPU fan header1 x water cooling fan header (CPU_OPT)3 x system fan headers1 x front panel header1 x front panel audio header1 x USB 3.0/2.0 header2 x USB 2.0/1.1 headers1 x Thunderbolt add-in card connector1 x Clear CMOS jumper1 x CPU mode switch1 x audio gain control switchPuertos posteriores1 x PS/2 keyboard port1 x PS/2 mouse port6 x USB 3.0/2.0 ports4 x USB 2.0/1.1 ports1 x optical S/PDIF Out connector1 x RJ-45 port5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In/Mic In, Line Out, Headphone)2 x Wi-Fi antenna connector holesFactor de formaE-ATX Form Factor; 30.5cm x 26.4cm
