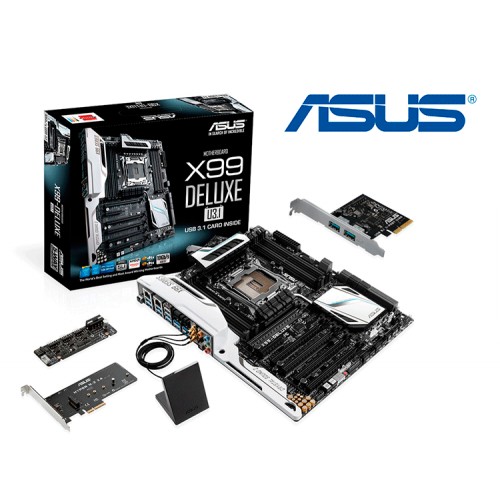

MOTHERBOARD ASUS X99-DELUXE/U3.1

Descripción

ModeloX99-DELUXE/U3.1CPUIntel® Socket 2011-v3 Core™ i7 Processors Supports Intel® 22 nm CPUSupports Intel® Turbo Boost Technology Socket2011-v3ChipsetIntel® X99Memoria8 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory Quad Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP)Tarjeta Gráfica AudioRealtek® ALC1150 8-Channel High Definition Audio CODEC featuring Crystal Sound 2- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking- High quality 112 dB SNR stereo playback output (Line-out at rear) and 104 dB SNR stereo playback input (Line-in)- High-fidelity audio OP AMP(s)Audio Feature :- DTS Ultra PC II- DTS Connect- Optical S/PDIF out port(s) at back panel- BD Audio Layer Content Protection- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals- Audio amplifier: Provides the highest-quality sound for headphone and speakers- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity- Unique de-pop circuit: Reduces start-up popping noise to audio outputs- Top notch audio sensation delivers according to the audio configuration- EMI protection cover to prevent electrical noise to affect the amplifier qualityLANIntel® I218V, 1 x Gigabit LAN Controller(s)Intel® I211-AT, 1 x Gigabit LANDual Gigabit LAN controllers- 802.3az Energy Efficient Ethernet (EEE) applianceSupport Teaming TechnologyASUS Turbo LAN UtilityPuertos de expansión   40-Lane CPU-5 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8, x8/x8/x16/x8, x8/x8/x8/x8/x8 mode) *11 x PCIe 2.0 x4 (max at x4 mode) *228-Lane CPU-3 x PCIe 3.0/2.0 x16 (x16, x16/x8, x8/x8/x8) 2 x PCIe 2.0 x16 (x1 mode) 1 x PCIe 2.0 x4 (max at x4 mode) *2Soporte Multi-GPUSupports NVIDIA® Quad-GPU SLI™ Technology Supports NVIDIA® 3-Way SLI™ Technology Supports AMD Quad-GPU CrossFireX™ Technology Supports AMD 3-Way CrossFireX™ TechnologyAlmacenamientoNew Intel® Core™ i7 Processors : 1 x M.2 Socket 3, with vertical M Key design, type 2242/2260/2280 storage devices support (Support PCIE SSD only)Intel® X99 chipset : 1 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s ports8 x SATA 6Gb/s port(s), *3, Support Raid 0, 1, 5, 10Supports Intel® Smart Response Technology, Intel® Rapid Recovery Technology*4ASMedia® SATA Express controller : *51 x SATA Express port, , compatible with 2 x SATA 6.0 Gb/s portsUSBIntel® X99 chipset : 4 x USB 3.0/2.0 port(s) (4 at mid-board)Intel® X99 chipset : 6 x USB 2.0/1.1 port(s) (2 at back panel, , 4 at mid-board)ASMedia® USB 3.0 controller : 10 x USB 3.0/2.0 port(s) (10 at back panel, blue)Conectores I/O Internos  1 x AAFP connector2 x USB 3.0 connector(s) support(s) additional 4 USB 3.0 port(s) (19-pin)2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)2 x SATA Express connector: gray, 1 x M.2 Socket 3 with vertical M Key design, type 2242/2260/2280 storage devices support (Support PCIE SSD only)1 x TPM connector(s) 8 x SATA 6Gb/s connector(s)1 x CPU Fan connector(s) (1 x 4 -pin)1 x CPU OPT Fan connector(s) (1 x 4 -pin)4 x Chassis Fan connector(s) (4 x 4 -pin)1 x S/PDIF out header(s)1 x Thunderbolt header(s)1 x 24-pin EATX Power connector(s)1 x 8-pin ATX 12V Power connector(s)1 x EZ XMP switch1 x System panel(s) (Q-Connector)1 x Chassis Intrusion connector(s)1 x DRCT header(s)1 x MemOK! button(s)1 x Thermal sensor connector(s)1 x TPU switch(es)1 x EPU switch(es)1 x CPU/DRAM overvoltage jumper(s)1 x Power-on button(s)1 x Reset button(s)1 x Clear CMOS button(s)1 x 5-pin EXT_FAN(Extension Fan) connector1 x SLI/CFX switch (2/3-WAY adjustments)Puertos posteriores2 x LAN (RJ45) port(s)10 x USB 3.0 (blue) 2 x USB 2.0 1 x Optical S/PDIF out5 x Audio jack(s)1 x USB BIOS Flashback Button(s)1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v4.0Factor de formaATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
