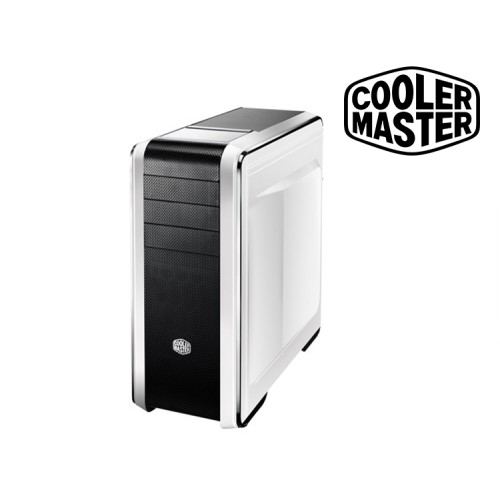

GABINETE COOLER MASTER 690 III CMS-693-KWN1

Descripción

Model NumberBlack: CMS-693-KKN1          CMS-693-KWN1 (with side panel window)Green: CMS-693-GWN1 (with side panel window)White: CMS-693-WWN1-V2Available ColorMidnight Black, GreenWhiteMaterialsPolymer, mesh front bezelDimensions (W x H x D)230 x 507 x 502 mm / 9.1 x 20.0 x 19.8 inchNet Weight8.9 kg / 19.6 lbs8.7 kg / 19.2 lbsM/B TypemicroATX, ATX5.25″ Drive Bays3 (exposed)3.5″ Drive Bays7 (hidden)3 (hidden)2.5″ Drive Bays10 (hidden; 7 from the HDD/SSD combo cages, 1 under the ODD cage, 1 behind the M/B tray,1 at the bottom)5 (hidden); 3 from the HDD/SSD combo cages, 2 from M/B tray, or 5.25″ bay, or bottom PanelI/O PanelUSB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports AC97 / HD Audio)USB 3.0 x 2, USB 2.0 x 2, Audio In & Out (supports HD Audio)Expansion Slots7+1Cooling SystemTop: 120/140mm fan x 2, or 200mm fan x 1 (optional)Front: 200mm fan x 1 (installed), or 120/140mm fan x 2 , 180mm fan x 1(optional)Rear: 120mm fan x 1 (installed)Side: 120mm fan x 2 or 180/200mm fan x 1(optional) – for CMS-693-KKN1 (standard version) onlyBottom: 120mm fan x 1 (optional)HDD cage: 120mm fan x 1 (optional)Top: 120/140mm fan x 2, or 200mm fan x 1 (optional)Front: 120/140mm fan x 2 (installed 1 x 140mm fan), or 200/180mm fan x 1 (optional)Rear: 120mm fan x 1 (installed)Bottom: 120mm fan x 1 (optional)Power Supply TypeStandard ATX PS2Standard ATX PS2 (optional)Maximum CompatibilityVGA card length:423 mm / 16.6 inch (without cage)312mm / 12.3 inch (with SSD cage)280mm / 11.0 inch (with HDD cage)CPU cooler height: 171mm / 6.7 inchVGA card length:423 mm / 16.6 inch (w/o cage)CPU cooler height: 171mm / 6.7 inch
